Azurite - docker

In our previous post we configured a local repository which can read flat files from our hard drive, next we're going to set up a docker image with azurite.

The Azurite open-source emulator provides a free local environment for testing your Azure Blob, Queue Storage, and Table Storage applications. When you're satisfied with how your application is working locally, switch to using an Azure Storage account in the cloud. The emulator provides cross-platform support on Windows, Linux, and macOS.

Use Azurite emulator for local Azure Storage development | Microsoft Learn

Though one can connect to Azurite using standard http, We're going to opt for https, it adds a bit of complexity, however it's worth the investment, since later on it will be simpler to create a production version of an AzureRepo.

We're going to have to install the mkcert

mkcert is a simple tool for making locally-trusted development certificates. It requires no configuration.

GitHub - FiloSottile/mkcert: A simple zero-config tool to make locally trusted development certificates with any names you'd like.

I always suggest you go to the official documentation, because it may very well change and to be honest generally whenever i read my own blog posts, I usually go to back to the source material. That said at the time of this article you can install mkcert on a mac using homebrew

brew install mkcert

brew install nss # if you use Firefox

next with mkcert installed you'll have to install a local CA

mkcert -install

You'll have to provide your password to install the mkcert utility, but once it's setup you'll be able to easily make as many locally trusted development certificates as you please.

Now that you have the mkcert utility installed create a folder in your project called _azuriteData,  realistically this folder can have any name you like, however it's nice when folders and variables describe what they are used for; makes future you not want to kill present you. Once you have your folder created navigate into it and enter in the following command


mkcert 127.0.0.1

This will create two files inside your _azuriteData folder or whatever directory you're currently in, a key.pem file and a .pem file; I'm not going to get into the deep details of what these two files are, partially because that's not the aim of this post and partially because I have a passing awareness when it comes to security, high level, and with little practical experience, you know like most consultants.

However I can tell you that PEM stand for Privacy Enhanced Mail, but the format is widely used for various cryptographic purposes beyond email security. You can think of the two files as the public key (.pem) and the corresponding private key (key.pem) for symmetric encryption.

In essence what happens is that the message is encrypted with the public key (127.0.0.1.pem), and then decrypted with the private one (127.0.0.1-key.pem); however you really don't need to worry too much about the details.

Your folder structure should like something like this:

next we are going to create a docker compose file, for this to work you need to have docker installed on your system, you can download the install file from https://www.docker.com/.

At the root of your project create a docker-compose-yaml file, this file will contain all the instructions you need to install and run an azurite storage emulator locally for testing purposes.

version: '3.9'

services:

azurite:

image: mcr.microsoft.com/azure-storage/azurite

container_name: "azurite-data"

hostname: azurite

restart: always

command: "azurite \

--oauth basic \

--cert /workspace/127.0.0.1.pem \

--key /workspace/127.0.0.1-key.pem \

--location /workspace \

--debug /workspace/debug.log \

--blobHost 0.0.0.0 \

--queueHost 0.0.0.0 \

--tableHost 0.0.0.0 \

--loose"

ports:

- "10000:10000"

- "10001:10001"

- "10002:10002"

volumes:

- ./_azuriteData:/workspace

One of the trickiest things about this compose file is that whatever local folder contains our public/private pem keys must be mapped to the 'workspace' of our docker container. This command basically tells docker to use the azurite-data folder as the volume for this container.

now if we go to our terminal and we enter the command

docker-compose up

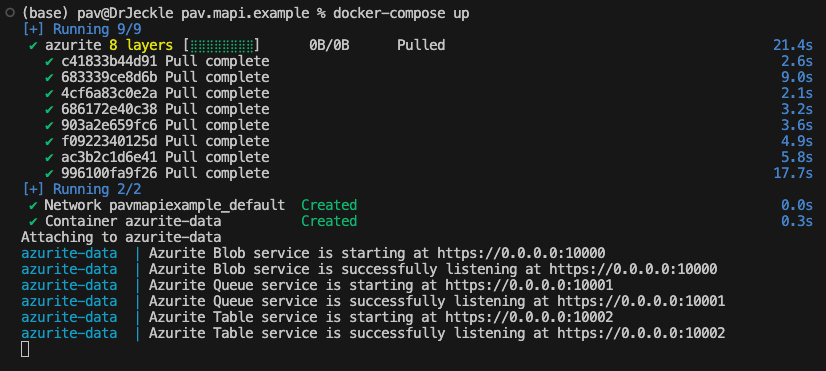

The first thing that docker will do is download the azurite image, once the download is complete, the image should be running in our docker container, that is of course if you have docker installed and running on your local machine.

You should see something like the above. Now if you navigate to your docker dashboard you should see your environment up and running

some caveats you may get some sort of

open /Users/[user]/.docker/buildx/current: permission denied

in that case run the following command, or commands

sudo chown -R $(whoami) ~/.docker

sudo chown -R $(whoami) ./_azurite-data

The above sets the current user to the owner of the docker application folder as well as the folder which you will map to your azurite container running in docker, this should fix your docker permission issues.

Dependency injection

I've spoken about the inversion of control pattern before, in essence it is a fundamental design pattern in object oriented languages. It separates the definition of capability from the logic that executes that capability. That may sound a bit strange but what it means is that the class which you interact with defines functions and methods, however the logic which those functions and methods use are defined in a separate class. At run time the class you interact with, either receives or initiates a class which implements the methods and functions needed.

The idea is that you can have multiple implementations for the same methods and then swap out those implementations without modifying your main codebase. There are a number of advantages to writing code this way, one of the primary ones is that this patter facilitates unit testing, however in this post we'll focus on the benefits of having multiple implementations of the same interface.

in the above UML diagram, we define an interface for a repository as well as a person class, we then define two repo classes which would both implement the IRepo interface, finally the Program class would either receive a concrete implementation of the IRepo class or it would receive instructions on which concrete implementation to use. (I've minimised the number of arrows to try and keep the diagram somewhat readable)

Let's try and implement the above in our Minimal API, start by creating the following folder structure with classes and interfaces

It's common to have a separate folder for all interfaces, personally I prefer to have my interfaces closer to their concrete classes, to be honest it really doesn't matter how you do it, what matters is that you are consistent, personally this is the way I like to set up my projects, but there's nothing wrong with doing it differently.

So let's start with the IPerson interface

namespace pav.mapi.example.models

{

public interface IPerson

{

string Id { get; }

string FirstName { get; set; }

string LastName { get; set; }

DateOnly? BirthDate { get; set; }

}

}

as you can see from the namespace, I don't actually separate it from the Person class, the folder is just there as an easy way to group our model interfaces. Next let's implement our Person class

using pav.mapi.example.models;

namespace pav.mapi.example.models

{

public class Person : IPerson

{

public string Id { get; set; } = "";

public string FirstName { get; set; } = "";

public string LastName { get; set; } = "";

public DateOnly? BirthDate { get; set; } = null;

public Person(){}

public Person(string FirstName, string LastName, DateOnly BirthDate) : this()

{

this.Id = Guid.NewGuid().ToString();

this.FirstName = FirstName;

this.LastName = LastName;

this.BirthDate = BirthDate;

}

public int getAge()

{

var today = DateOnly.FromDateTime(DateTime.Now);

var age = today.Year - this.BirthDate.Value.Year;

return this.BirthDate > today.AddYears(-age) ? --age : age;

}

public string getFullName()

{

return $"{this.FirstName} {this.LastName}";

}

}

}

An important thing to call out is, that this is a contrived example, setting the ID property with both a public setter as well as a public getter is not ideal, however I want to focus on the Inversion of control pattern and not get bogged down in the ideal ways of defining properties; I may tackle this in a future post.

Now on to defining our repo interface, simply define two functions, one to get people and one to get a specific person.

using pav.mapi.example.models;

namespace pav.mapi.example.repos

{

public interface IRepo

{

public Task<IPerson> GetPersonAsync(string id);

public Task<IPerson[]> GetPeopleAsync();

}

}

with that done, let's implement our Local repo, it's going to be very simple we are going to use use our path from our local appsettings file to load a JSON file full of people.

using System.Text.Json;

using pav.mapi.example.models;

namespace pav.mapi.example.repos

{

public class LocalRepo : IRepo

{

private string _filePath;

public LocalRepo(string FilePath)

{

this._filePath = FilePath;

}

public async Task<IPerson[]> GetPeopleAsync()

{

var opt = new JsonSerializerOptions

{

PropertyNameCaseInsensitive = true

};

try

{

using (FileStream stream = File.OpenRead(this._filePath))

{

var ppl = await JsonSerializer.DeserializeAsync<Person[]>(stream, opt);

if (ppl != null)

return ppl;

throw new Exception();

}

}

catch (Exception)

{

throw;

}

}

public async Task<IPerson> GetPersonAsync(string id)

{

var people = await this.GetPeopleAsync();

var person = people?.First(p => p.Id == id);

if (person != null)

return person;

throw new KeyNotFoundException($"no person with id {id} exitsts");

}

}

}

Next let's implement our DockerRepo

using pav.mapi.example.models;

namespace pav.mapi.example.repos

{

public class DockerRepo : IRepo

{

public Task<IPerson[]> GetPeopleAsync()

{

throw new NotImplementedException();

}

public Task<IPerson> GetPersonAsync(string id)

{

throw new NotImplementedException();

}

}

}

For now we'll just leave it unimplemented, later on when we set up a docker container, we'll implement our functions.

Finally let's specify which implementation to use based on our loaded profile in our Main

using pav.mapi.example.models;

using pav.mapi.example.repos;

namespace pav.mapi.example

{

public class Program

{

public static void Main(string[] args)

{

var builder = WebApplication.CreateBuilder(args);

var flatFileLocation = builder.Configuration.GetValue<string>("flatFileLocation");

if (String.IsNullOrEmpty(flatFileLocation))

throw new Exception("Flat file location not specified");

if(builder.Environment.EnvironmentName != "Production")

switch (builder.Environment.EnvironmentName)

{

case "Local":

builder.Services.AddScoped<IRepo, LocalRepo>(x => new LocalRepo(flatFileLocation));

goto default;

case "Development":

builder.Services.AddScoped<IRepo, DockerRepo>(x => new DockerRepo());

goto default;

default:

builder.Services.AddEndpointsApiExplorer();

builder.Services.AddSwaggerGen();

break;

}

var app = builder.Build();

switch (app.Environment.EnvironmentName)

{

case "Local":

case "Development":

app.UseSwagger();

app.UseSwaggerUI();

break;

}

app.MapGet("/v1/dataSource", () => flatFileLocation);

app.MapGet("/v1/people", async (IRepo repo) => await GetPeopleAsync(repo));

app.MapGet("/v1/person/{personId}", async (IRepo repo, string personId) => await GetPersonAsync(repo, personId));

app.Run();

}

public static async Task<IPerson[]> GetPeopleAsync(IRepo repo)

{

return await repo.GetPeopleAsync();

}

public static async Task<IPerson> GetPersonAsync(IRepo repo, string personId)

{

var people = await GetPeopleAsync(repo);

return people.First(p => p.Id == personId);

}

}

}

Before we test our code, we first need to setup a flat file somewhere on our hard drive,

[

{

"id": "1",

"firstName": "Robert",

"lastName": "Smith",

"birthDate": "1984-01-26"

},

{

"id": "2",

"firstName": "Eric",

"lastName": "Johnson",

"birthDate": "1988-08-28"

}

]

I created the above file in the directory "/volumes/dev/people.json",  it's important to know the path because in the next step we are going to add it to our appsettings.Local.json file

{

"flatFileLocation": "/Volumes/dev/people.json"

}

With all that complete let's go into our main terminal and run our api with our local profile

dotnet watch run -lp local --trust

in our Swagger we should see three get endpoints we can call

Each one of these should work

/v1/dataSource should return where our flatfile is located on our local computer

/Volumes/dev/people.json

/v1/people should return the contents of our people.json file

[
  {
    "id": "1",
    "firstName": "Robert",
    "lastName": "Smith",
    "birthDate": "1984-01-26"
  },
  {
    "id": "2",
    "firstName": "Eric",
    "lastName": "Johnson",
    "birthDate": "1988-08-28"
  }
]

/v1/person/{personId} should return the specified person.

 {
    "id": "2",
    "firstName": "Eric",
    "lastName": "Johnson",
    "birthDate": "1988-08-28"
  }

Next if we stop our api (cntrl+c) and restart it with the following command

dotnet watch run -lp http --trust

we again run our application however this time with the development profile, if we navigate to our swagger and call our functions the only one which will work is

/v1/dataSource which should return the placeholder we specified in our appsettings.Development.json file.

Dev

the other two endpoints should both fail, since we never implemented them

MAPI Swagger

In my previous post we created a very simple empty minimal API project, in this post we are going to add swagger to it. You maybe asking wtf is that? swagger lets you test your end-points without the need of Postman or Insomnia, though neither of those tools is particularly worse or better than the other, and they're very handy for testing production code; But for dev work I find swagger is the best option, because it's the easiest to work with.

To get start open your 'csproj' file, it's the XML one, it should look like the following

<Project Sdk="Microsoft.NET.Sdk.Web">

<PropertyGroup>

<TargetFramework>net7.0</TargetFramework>

<Nullable>enable</Nullable>

<ImplicitUsings>enable</ImplicitUsings>

</PropertyGroup>

</Project>

in your command prompt enter in:

dotnet add package Swashbuckle.AspNetCore

you should see the following:

Microsoft projects generally use nuget packages for feature installs, you can check out the swashbuckle package at https://www.nuget.org/packages/swashbuckle.aspnetcore.swagger/. Your csproj file should now have a reference to the Swashbuckl.AspNetCore nuget package and look something like the following.

<Project Sdk="Microsoft.NET.Sdk.Web">

<PropertyGroup>

<TargetFramework>net7.0</TargetFramework>

<Nullable>enable</Nullable>

<ImplicitUsings>enable</ImplicitUsings>

</PropertyGroup>

<ItemGroup>

<PackageReference Include="Swashbuckle.AspNetCore" Version="6.5.0" />

</ItemGroup>

</Project>

with that that done we now have to configure swagger in our Program.cs main function, from our previous post we should have something like the following

namespace pav.mapi.example;

public class Program

{

public static void Main(string[] args)

{

var builder = WebApplication.CreateBuilder(args);

var app = builder.Build();

var flatFileLocation = builder.Configuration.GetValue<string>("flatFileLocation");

app.MapGet("/", () => flatFileLocation);

app.Run();

}

}

If your run your application you'll see either "Dev" or "Local" printed out on your screen depending on which profile you load. the thing is that only happens because we mapped the roort url to the value of our appsettings file, if we change that to say "v1/dataSource" then we'll just get a blank page

public static void Main(string[] args)

{

var builder = WebApplication.CreateBuilder(args);

var app = builder.Build();

var flatFileLocation = builder.Configuration.GetValue<string>("flatFileLocation");

app.MapGet("/v1/dataSource", () => flatFileLocation);

app.Run();

}



If we navigate to "http://localhost:5050/v1/dataSource" we'll only now see our "Dev" or "Local" response based on which profile we have loaded. Generally api's have multiple endpoints and it would be nice to be able to not only see them all but be able to test them without having to have navigate to each url. This is exactly what swagger provides, so let's configure it in our Main method.

Before our builder.Build() command add the following two lines of code,

builder.Services.AddEndpointsApiExplorer();

builder.Services.AddSwaggerGen();

these to lines more or less configure swagger to be able to map all of our endpoints, and generate a swagger UI, however that's not enough we still need to enable it in our project. Most examples show you how to do this in development profile, but we also have our Local profile; after our builder.Build() command add the following.

if (app.Environment.EnvironmentName == "Local" ||

app.Environment.IsDevelopment())

{

app.UseSwagger();

app.UseSwaggerUI();

}

with that done now when we start our application in either "Development" or our custom "Local" profiles swagger will be added to our project. To navigate to your swagger page, simply append the word "Sagger" to the root url of your API "http://localhost:5050/swagger/index.html" and you should see something like the following:

and that's it now, in your "Local" as well as your "Dev" Profiles you can test your api

Minimal API

When it comes to data access, my preferred approach is to use a dotnet core minimal API; for me this is the ideal middle man between your data and your user interface, I like it because it's simple to set up and simple to understand. Though it doesn't come with all of the complexity of a traditional MVC api. it also doesn't come with all of the extra features of its more 'complex' or 'advanced' (depending on how you look at it) counter part.

That said let's get started, open your terminal and navigate to your desired parent directory.
Execute the following commands:

dotnet new web -o pav.mapi.example --use-program-main

followed by

code pav.mapi.example

The first command says create a web project with the name 'pav.mapi.example' and use the traditional public static main template for the program.cs pag. I do this because I'm old, and it's what I am use to.

The second line just instructs code to open up the pav.mapi.example folder in a new instance of MS Code, if you wanted to open it in the same instance you could throw on the -r option so your command would look like 'Code pav.mapi.example -r' and it would open in the current instance of MS code you have running.

Your app should look something like the above, let's start with the explorer, notice that you have two appsettings files, the way it works is dotnet always loads the 'Appsettings.json' file then it will load when appropriate the corresponding 'Appsettings.<environment>.json' file.

The $10 question is how to I specify which extra app settings file to use; well before we answer that, let's add an 'appsettings.Local.json' file; generally I like to have a version of everthing that I can run in a stand alone fashion, this way I can develop and test things in isolation without the need of an SQL database or a Cloud storage container, or docker.

In your 'appsettings.Local.json' file add a single entry "flatFileLocation": "Local" and you guessed it in your 'appsettings.Development.json' file add a single entry "flatFileLocation": "Dev", later on we may expand on this, but for now if we can start our application in one of these two modes that will be a win.

Now open up your Program.cs file

namespace pav.mapi.example;

public class Program

{

public static void Main(string[] args)

{

var builder = WebApplication.CreateBuilder(args);

var app = builder.Build();

app.MapGet("/", () => "Hello World!");

app.Run();

}

}

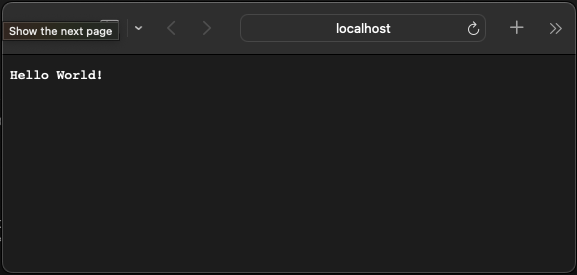

this is why I prefer the Minimal API project, because that's all there is to it, if we run our application now with "dotnet run" we'll see the following in our browser.

Let's try to swap that with our Appsettings flatFileLocation value, modify your Program.cs code to the following

namespace pav.mapi.example;

public class Program

{

public static void Main(string[] args)

{

var builder = WebApplication.CreateBuilder(args);

var app = builder.Build();

var flatFileLocation = builder.Configuration.GetValue<string>("flatFileLocation");

app.MapGet("/", () => flatFileLocation);

app.Run();

}

}

Notice that we added a 'FlatFileLockaiton' variable and assign it our value from our appsettings file, with this change if we stop our project with 'cntrl+c' and run it again with 'dotnet run', then reload our browser we'll get the following.

Which is pretty good we are reading from our 'appsettings' file, that's fine and dandy, but how do we specify the file we want to load, well for that we need to open our properties folder, and take a look at our 'launchSettings.json' file

{

"iisSettings": {

"windowsAuthentication": false,

"anonymousAuthentication": true,

"iisExpress": {

"applicationUrl": "http://localhost:1286",

"sslPort": 44327

}

},

"profiles": {

"http": {

"commandName": "Project",

"dotnetRunMessages": true,

"launchBrowser": true,

"applicationUrl": "http://localhost:5019",

"environmentVariables": {

"ASPNETCORE_ENVIRONMENT": "Development"

}

},

"https": {

"commandName": "Project",

"dotnetRunMessages": true,

"launchBrowser": true,

"applicationUrl": "https://localhost:7177;http://localhost:5019",

"environmentVariables": {

"ASPNETCORE_ENVIRONMENT": "Development"

}

},

"IIS Express": {

"commandName": "IISExpress",

"launchBrowser": true,

"environmentVariables": {

"ASPNETCORE_ENVIRONMENT": "Development"

}

}

}

}

take a closer look at the profiles sections, notice that under the environment variables we have an entry "ASPNETCORE_ENVIROMENT": "Development", now we could very well switch "Development" to "Local" and run our application that way

{

"iisSettings": {

"windowsAuthentication": false,

"anonymousAuthentication": true,

"iisExpress": {

"applicationUrl": "http://localhost:1286",

"sslPort": 44327

}

},

"profiles": {

"http": {

"commandName": "Project",

"dotnetRunMessages": true,

"launchBrowser": true,

"applicationUrl": "http://localhost:5019",

"environmentVariables": {

"ASPNETCORE_ENVIRONMENT": "Local" // Take a look here

}

},

"https": {

"commandName": "Project",

"dotnetRunMessages": true,

"launchBrowser": true,

"applicationUrl": "https://localhost:7177;http://localhost:5019",

"environmentVariables": {

"ASPNETCORE_ENVIRONMENT": "Development"

}

},

"IIS Express": {

"commandName": "IISExpress",

"launchBrowser": true,

"environmentVariables": {

"ASPNETCORE_ENVIRONMENT": "Development"

}

}

}

}

though better than having two versions of our application, not exactly the ideal solution, so let's add a profile specifically for our "Local" environment.

{

"iisSettings": {

"windowsAuthentication": false,

"anonymousAuthentication": true,

"iisExpress": {

"applicationUrl": "http://localhost:1286",

"sslPort": 44327

}

},

"profiles": {

"http": {

"commandName": "Project",

"dotnetRunMessages": true,

"launchBrowser": true,

"applicationUrl": "http://localhost:5020",

"environmentVariables": {

"ASPNETCORE_ENVIRONMENT": "Development"

}

},

"batman": {

"commandName": "Project",

"dotnetRunMessages": true,

"launchBrowser": true,

"applicationUrl": "http://localhost:5050",

"environmentVariables": {

"ASPNETCORE_ENVIRONMENT": "Local"

}

},

"https": {

"commandName": "Project",

"dotnetRunMessages": true,

"launchBrowser": true,

"applicationUrl": "https://localhost:7177;http://localhost:5019",

"environmentVariables": {

"ASPNETCORE_ENVIRONMENT": "Development"

}

},

"IIS Express": {

"commandName": "IISExpress",

"launchBrowser": true,

"environmentVariables": {

"ASPNETCORE_ENVIRONMENT": "Development"

}

}

}

}

I named the local launch settings profile batman on purpose, this is because I want to drive home that you are specifying the profile via the launch settings, which in turn choose the appsettings, not the other way around. I placed my custom environment second to drive home the fact that by default when you 'dotnet run', it's the first profile that is loaded if not specified. if you where to execute 'dotnet run', the browser would return "dev"

Now finally for the big reveal, if you want to specify the profile you simple type in

dotnet run -lp batman -lp stand for load profile

and that's it you now have an app that can be customised based on your appsettings json file.

One final note, go ahead and replace batman with local, just to remove the silliness from our example
